The aQWERTYon pitch wheels and the future of music theory visualization

The MusEDLab will soon be launching a revamped version of the aQWERTYon with some enhancements to its visual design, including a new scale picker. Beyond our desire to make our stuff look cooler, the scale picker represents a challenge that we’ve struggled with since the earliest days of aQW development. On the one hand, we want to offer users a wide variety of intriguing and exotic scales to play with. On the other hand, our audience of beginner and intermediate musicians is likely to be horrified by a list of terms like “Lydian dominant mode.” I recently had the idea to represent all the scales as colorful icons, like so:

Read more about the rationale and process behind this change here. In this post, I’ll explain what the icons mean, and how they can someday become the basis for a set of new interactive music theory visualizations.

Musical pitches rise and fall linearly, but pitch class is circular. When you go up or down the chromatic scale, the note names “wrap around” every twelve notes. This naming convention reflects the fact that we hear notes an octave apart as being “the same”, probably because they share so many overtones. (Non-human primates hear octaves as being equivalent too.)

chromatic circle

The note names and numbers are all based on the C major scale, which is Western music’s “default setting.” The scale notes C, D, E, F, G, A and B (the white keys on the piano) are the “normal” notes. (Why do they start on C and not A? I have no idea.) You get D-flat, E-flat, G-flat, A-flat and B-flat (the black keys on the piano) by lowering (flatting) their corresponding white key notes. Alternately, you can get the black key notes by raising or sharping the white key notes, in which case they’ll be called C-sharp, D-sharp, F-sharp, G-sharp, and A-sharp. (Let’s just briefly acknowledge that the imagery of the “normal” white and “deviant” black keys is just one of many ways that Western musical culture is super racist, and move on.)

You can represent any scale on the chromatic circle just by “switching” notes on and off. For example, if you activate the notes C, D, E-flat, F, G, A-flat and B, you get C harmonic minor. (Alternatively, you could just deactivate D-flat, E, G-flat, A, and B-flat.) Here’s how the scale looks when you write it this way:

C harmonic minor - monochrome

This is how I conceive scales in my head, as a pattern of activated and deactivated chromatic scale notes. As a guitarist, it’s the most intuitive way to think about them, because each box on the circular grid corresponds to a fret, so you can read the fingering pattern right off the circle. When I think “harmonic minor,” I don’t think of note names, I think “pattern of notes and gaps with one unusually wide gap.”

Another beauty of the circle view is that you can get the other eleven harmonic minor scales just by rotating the note names while keeping the pattern of activated/deactivated notes the same. If I want E-flat harmonic minor, I just have to grab the outer ring and rotate it counterclockwise a few notches:

E-flat harmonic minor

My next thought was to color-code the scale tones to give an indication of their sound and function:

C harmonic minor scale necklace

Here’s how the color scheme works:

  • Green – major, natural, sharp, augmented
  • Blue – minor, flat, diminished
  • Purple – perfect (neither major nor minor)
  • Grey – not in the scale

Scales with more green in them sound “happier” or brighter. Scales with more blue sound “sadder” or darker. Scales with a mixture of blue and green (like harmonic minor) will have a more complex and ambiguous feeling.

My ambition with the pitch wheels is not just to make the aQWERTYon’s scale menu more visually appealing. I’d eventually like to have it be an interactive way to visualize chords too. Followers of this blog will notice a strong similarity between the circular scale and the rhythm necklaces that inspired the Groove Pizza. Just like symmetries and patterns on the rhythm necklace can tell you a lot about how beats work, so too can symmetries and patterns on the scale necklace can tell you how harmony works. So here’s my dream for the aQWERTYon’s future theory visualization interface. If you load the app and set it to C harmonic minor, here’s how it would look. To the right is a staff notation view with the appropriate key signature.

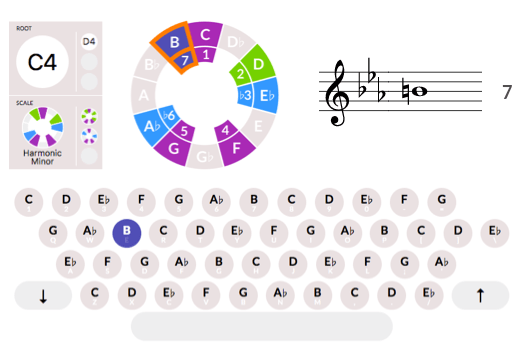

When you play a note, it would change color on the keyboard and the wheel, and appear on the staff. The app would also tell you which scale degree it is (in this case, seven.)

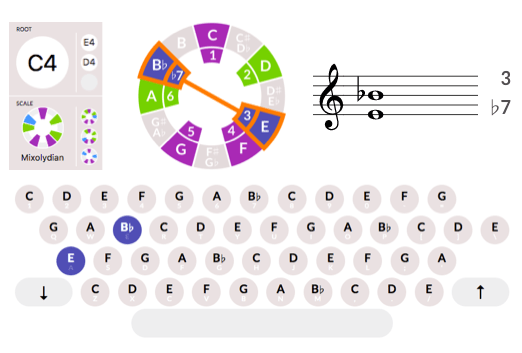

If you play two notes simultaneously, in this case the third and seventh notes in C Mixolydian mode, the app would draw a line between the two notes on the circle:

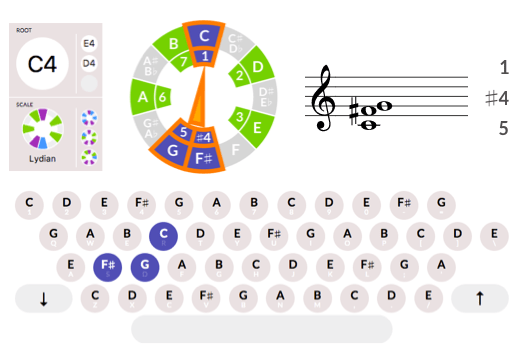

If you play three notes at a time, like the first, fourth and fifth notes in C Lydian, you’d get a triangle.

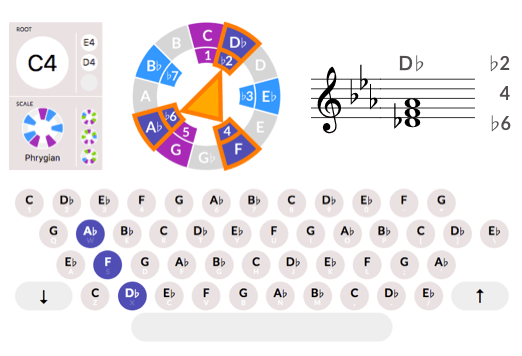

If your three notes spell out a chord, like the second, fourth and sixth notes in C Phrygian mode, the app would recognize it and shows the chord symbol on the staff.

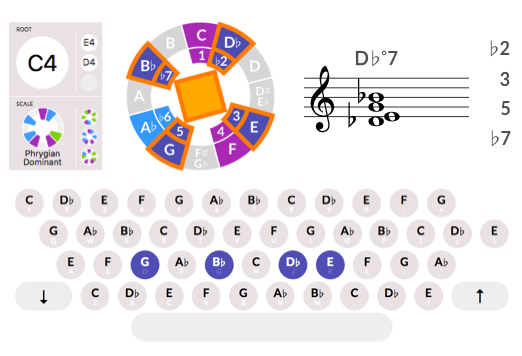

The pattern continues if you play four notes at a time:

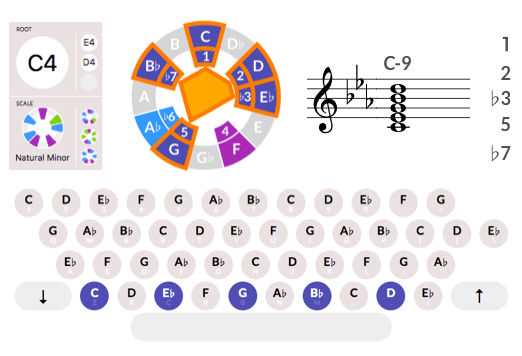

Or five notes at a time:

By rotating the outer ring of the pitch wheel, you could change the root of the scale, like I showed above with C harmonic minor. And if you rotated the inner ring, showing the scale degrees, you could get different modes of the scale. Modes are one of the most difficult concepts in music theory. That is, they’re difficult until you learn to imagine them as rotations of the scale necklace, at which point they become nothing harder than a memorization exercise.

I’m designing this system to be used with the aQWERTYon, but there’s no reason it couldn’t take ordinary MIDI input as well. Wouldn’t it be nice to have this in a window in your DAW or notation program?

Music theory is hard. There’s a whole Twitter account devoted to retweeting students’ complaints about it. Some of this difficulty is due to the intrinsic complexity of modern harmony. But a lot of it is due to terminology and notation. Our naming system for notes and chords is a set of historically contingent kludges. No rational person would design it this way from the ground up. Thanks to path dependency, we’re stuck with it, much like we’re stuck with English grammar and the QWERTY keyboard layout. Fortunately, technology gives us a lot of new ways to make all the arcana more accessible, by showing multiple representations simultaneously and by making those representations discoverable through playful tinkering.

Do you find this idea exciting? Would you like it to be functioning software, and not just a bunch of flat images I laboriously made by hand? Help the MusEDLab find a partner to fund the developer and designer time. A grant or gift would work, and we’d also be open to exploring a commercial partnership. The aQW has been a labor of volunteer love for the lab so far, and it’s already one of the best music theory pedagogy tools on the internet. But development would go a lot faster if we could fund it properly. If you have ideas, please be in touch!

Update: Will Kuhn’s response to this post.
